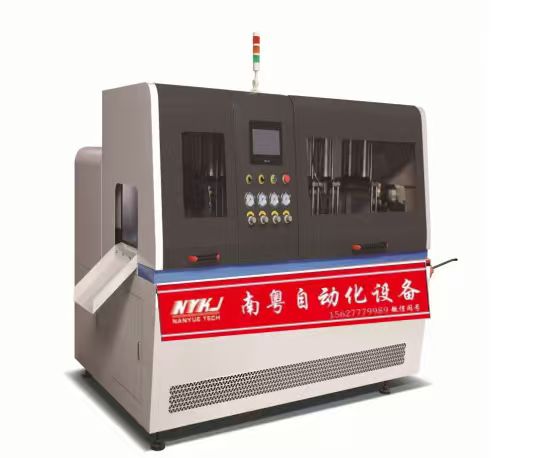

550 Split-Type Cutter NY-2616

Category:
Description

Standard Configuration

  • Integral Bed Frame
  • Cooling System
  • CNC System (Xiankong), 13KW Main Motor and Frequency Converter
  • Electrical Control System

Optional Configuration

  • 3-Station Electric Transmission
  • Steady Rest
  • CNC System (Inovance, Xiankong, Lyuwei, etc.)
  • Direct Pressure Chuck (Hydraulic/Pneumatic)
  • Servo Feed Transmission System
  • Semi-Enclosed Protective Cover
  • 3-Station Electric Turret
  • Automatic Lubrication System

Parameter Table

Item Unit NY-2616
NC System – Inovance, Xiankong, Lyuwei; KND2000/Guangshu GSK 980TDI (Optional)
Maximum Swing Diameter of Bed mm 750-1500 (Customizable range)
Maximum Swing Diameter of Turret mm 10-1400 (Customizable range)
Bed Guide Rail Width mm 750 (Split-type); 1500 (Integrated)
X/Z Axis Rapid Traverse Speed mm/min 6000/8000
X/Z Axis Minimum Feed Increment mm 0.001/0.001
Main Motor Power KW 13

Enhanced Optimization for International Trade

1. Customization Information (Tailored to Overseas Customization Needs):

“All swing diameters and turret capacity parameters are customizable. Please contact our team to receive a tailored solution based on your production needs.”

2. Highlighting Core Advantages (Emphasizing Key Selling Points):

• Wide parameter range (bed swing diameter 750–1500 mm), suitable for multi-scenario machining;

• High precision, with a minimum feed increment of 0.001 mm;

• Monolithic cast iron bed ensures stable operation;

• Flexible configuration, with optional 3-station drive units and turrets.

3. Terminology Consistency (Unified Terminology Across the Series):

Maintain industry-standard terminology used in previous models to ensure overseas customers face no comprehension barriers when comparing the full product range (e.g., core terms such as “Split-type/Integrated” and “Steady Rest” remain consistent).

Please let us know if you need the following additional information:

• Material specifications (e.g., English annotations for bed and guideway materials);

• Statements regarding CE/ISO certifications;

• Key information for international quotations, such as packaging, delivery times, and warranty periods;

• A consolidated parameter comparison table for the entire series (NY-2603 to NY-2616).
